🎉 Intercepting Claude Desktop MCP Traffic with Burp Suite

Overview

If you are pentesting Model Context Protocol (MCP) servers, the Claude Desktop app is the ultimate integration test. But debugging it can feel like working in a black box.

When your connection fails or tools don’t show up, you often get a generic “Connection Failed” message. There are no detailed logs, no network tab, and no visibility into the JSON-RPC messages flying back and forth.

I recently needed to connect Claude Desktop to a remote MCP server while routing the traffic through Burp Suite to inspect the payloads. It turned out to be much harder than just setting an environment variable.

After hours of debugging Node.js timeouts, HTTP/2 protocol errors, and silent crashes, I found the working configuration. Here is the complete guide to gaining full visibility into your MCP traffic.

The Architecture

Before we fix the config, it helps to understand why this is difficult. We are trying to force a strictly typed Node.js client (inside Claude) to talk through a Java-based proxy (Burp) to a remote server, all while maintaining a persistent Server-Sent Events (SSE) stream.

Step 1: The “All-in-One” Configuration

You don’t need complex wrapper scripts. You can achieve full proxy interception directly inside your claude_desktop_config.json file.

First, install the mcp-remote tool globally to avoid npx timeouts:

npm install -g mcp-remote

Then, use this configuration (adjust paths for your OS): claude_desktop_config.json

{
  "mcpServers": {
    "server": {
      "command": "/bin/bash",
      "args": [
        "-c",
        "/opt/homebrew/bin/mcp-remote https://your-remote-server.com/mcp --enable-proxy --header \"Authorization: Bearer $API_TOKEN\" 2> /tmp/mcp_stderr.log"
      ],
      "env": {
        "API_TOKEN": "YOUR_ACTUAL_TOKEN_HERE",
        "HTTP_PROXY": "http://127.0.0.1:8080",
        "HTTPS_PROXY": "http://127.0.0.1:8080",
        "NODE_TLS_REJECT_UNAUTHORIZED": "0",
        "PATH": "/opt/homebrew/bin:/usr/local/bin:/usr/bin:/bin:/usr/sbin:/sbin"
      }
    }
  }
}

💡Why This Works (The “Gotchas”)

• Absolute Paths: GUI apps don’t load your $PATH. You must point directly to the binary (e.g., /opt/homebrew/bin/mcp-remote).
• Proxy Flags: The mcp-remote tool ignores proxy env vars unless you explicitly pass –enable-proxy.
• Logging: Redirecting stderr to a file (2> /tmp/mcp_stderr.log) gives you the only visibility into why a connection dies. Never redirect stdout, or you will break the pipe to Claude.

Step 2: Configuring Burp Suite (Critical)

Node.js’s HTTP client (undici) is extremely strict. Default Burp settings will cause the connection to crash immediately. You must apply these three specific fixes.

Fix A: Disable HTTP/2 (Prevent Protocol Crashes)

Burp often tries to downgrade HTTP/2 connections incorrectly, causing “Invalid Header” errors. You must disable it on both sides.

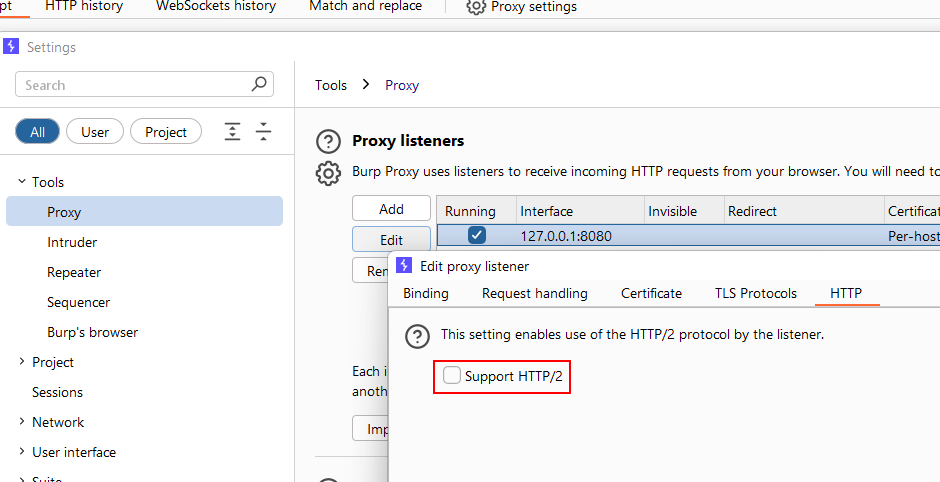

• Listener: Go to Proxy > Proxy Settings > Edit Proxy Listeners (127.0.0.1:8080) > HTTP Tab > Uncheck “Support HTTP/2”.

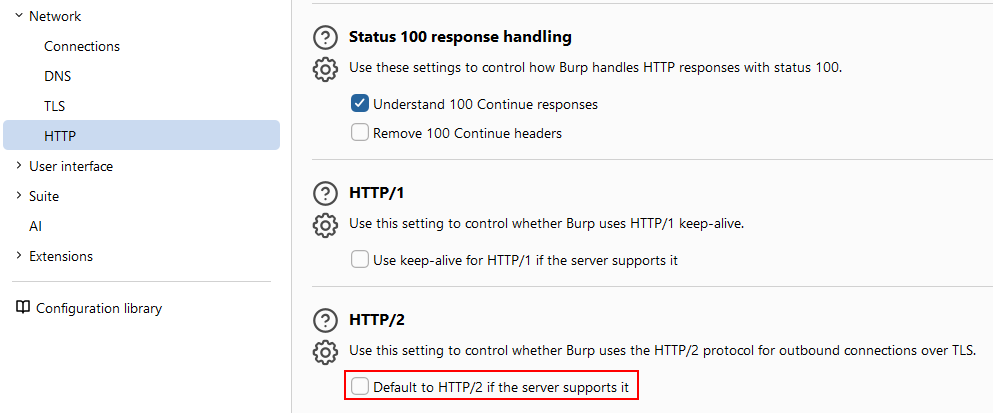

• Upstream: Go to Settings > Network > HTTP > HTTP/2 > Uncheck “Enable HTTP/2”.



Fix B: Prevent Connection Blocking (The “One Lane” Fix)

Since we disabled HTTP/2, the initial SSE stream “hogs” the single TCP connection. If you try to run a tool, the request will hang because the socket is busy. We must force a new connection for every request.

1. Go to: Proxy > Match and Replace.
2. Add Rule:
   • Type: Request header
   • Match: Connection: keep-alive
   • Replace: Connection: close



Fix C: Enable Streaming Responses

Tell Burp explicitly not to wait for this URL.

1. Go to: Settings > Network > HTTP > Streaming Responses.
2. Add URL: your-server-domain.com
3. Crucial: Check “Store streaming responses” (so you can see them) and Uncheck “Strip chunked encoding metadata”.



Step 3: The “Toggle Trick” (Pro Tip)

If you have done all the above and Claude still times out during the initial connection (showing a disabled switch), use the Pass-Through Toggle Trick.

The initial handshake (tools/list) is often too large and fragile for the proxy to buffer instantly.

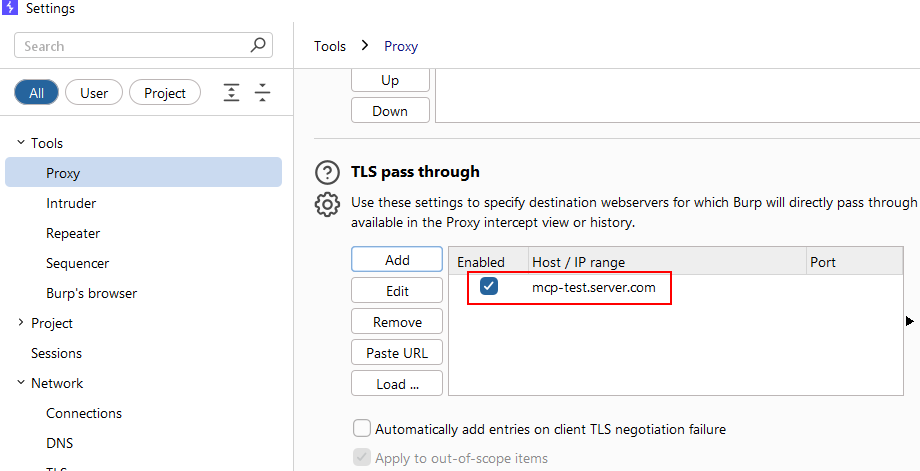

1. Enable Pass Through: Go to Settings > Tools > Proxy > TLS Pass Through and add your server domain.
2. Start Claude: The connection will succeed immediately (bypassing Burp) and the switch will turn Green.
3. Disable Pass Through: While Claude is running, remove the domain from the TLS Pass Through list.



📊Result: The connection stays alive, but now Burp will begin capturing all subsequent traffic (like tool executions and prompts) perfectly.

🚀 Conclusion

Debugging MCP servers doesn’t have to be a guessing game. By forcing the traffic through a proxy, you can inspect every tool call, fuzz inputs, and verify security controls—all from within your local development flow.

Happy Intercepting!
